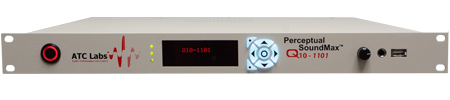

Model Q10-1101 is a new analog cost effective high quality audio processor for FM Internet & DAB employing powerful state-of-art signal processing techniques. It performs elaborate 10-band processing using an extremely detailed and accurate time-frequency representation of the audio signals It makes sound livelier, crisper, detailed, cleaner, and louder, using our world class pedigree in audio signal modeling and signal processing algorithms.

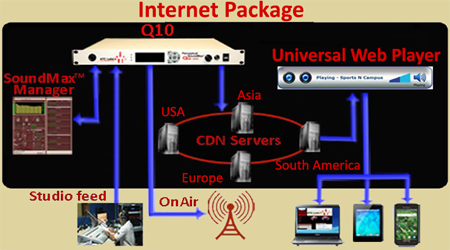

Perceptual SoundMax^TM Model Q10-1101 is actually 3 products rolled into one. It provides 2 completely independent 10-band processing paths – one for on-air FM processing and one for Internet streaming. Additionally, a high quality AAC/AAC+/MP3 encoder for Internet streaming is built in which is capable of connecting with industry standard Icecast^TM streaming servers, as well as other CDN networks. As part of our Internet Package this product also has an available web based player, requiring no additional apps or installations. This package also includes the use of our distributed, cloud based, CDN network. In terms of available audio processing modules the sophisticated 10-band processing engine is supplemented by a built-in broadcast grade wideband background noise removal product as well as a suite of audio conditioning/sweetening tools into one box, eliminating the need for broadcasters to place 3 or more separate hardware products in their broadcast chain to achieve the similar impact.

support@atc-labs.com

sales@atc-labs.com

+1-973-796-2840 (USA)
+91-120-2519611 (India) sales@atc-labs.com

• Analog Audio Input

  1. Configuration	Left and Right/Stereo
     Connectors	Balanced XLR Female
     Maximum Input Level	+22dBu
     Impedence	>10k Ω
     Nominal Input Level	Adustable -4.0 to +12.0 dBu
     EMI Suppressed	Yes
     A/D Conversion	Minimum 24 bit

• Analog Audio Output

  1. Configuration	Left and Right/Stereo Flat or Pre-emphasized (at 50µs or 75µs) software selectable
     Connectors	Balanced XLR Male
     Crosstalk	≤-70 dB
     Distortion	THD ≤0.02%
     SNR	≥90dB
     Frequency Response	(20Hz to 20kHz)@±0.2dB
     Output Level	Adjustable -6.0 to +10dBu
     D/A Conversion	Minimum 24 bit
     EMI Suppressed	Yes

• Streaming Audio Output

  1. Configuration	1 Internet stream out
     Connectors	RJ-45
     Bit Rates	32kbps - 128kbps
     Encoding Format	Enhanced AAC+ with ADTS encapsulation
     EMI Suppressed	Yes

• Ethernet & Remote PC Control

  1. Configuration	TCP/IP Protocol via Ethernet interface with Auto Presence Broadcast
     Connector	RJ-45
     EMI Suppressed	Yes

• Dimensions

  1. Width	482.6mm
     Height	44.5mm
     Depth	508.0mm
     Weight	6.5 kg

• Power

  1. Power Requirements	105-260 V AC Single Phase, 45-60 Hz
     Connector	IEC, EMI Suppressed, Detachable 3-wire chord with earthing
     Safety Standards	UL, CE

• Other Features

  1. Control	Front Panel Alpha-numeric Display/ Control for various operational parameters
     Management Control	Powerful SoundMax Manager Software on any networked PC for auto sense monitoring configuartion and control
     USB Connector	2 USB 2.0
     Operating Temperature range	00 to 500 C
     Relative Humidity	95% non-condensing
     Working Altitude	3000 meter AMSL
